High-Speed DAC
High-Speed DAC
Leveraging our unique low-power architecture and patents, we offer ultra-low-power CMOS Hall sensors. With high signal-to-noise ratio signal reconstruction technology, we also provide ultra-high sensitivity magnetic field sampling products.
Product Model

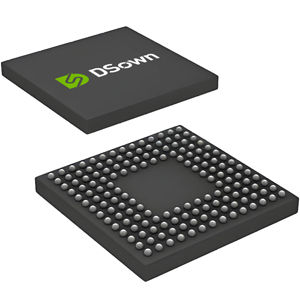

DAD9739
The DAD9739 is a semiconductor integrated circuit manufactured using CMOS technology. This product features a segmented current steering structure, which includes an LVDS receiver, timing synchronization circuit, bandgap reference source, SPI interface circuit, clock receiver circuit, and 14 bit DAC core.
Features
- Resolution: 14-bit.
- Sampling rate: 2.5 GSPS.
- SFDR ≥ 55dBc @ fout = 950MHz.
- Internal 1.2V reference voltage source.
- Input data interface: LVDS.
Applications
- Broadband communication system.
- Automatic testing instruments.
- Base stations, handheld devices.
- Radar, avionics equipment.
Specifications
Product Model | Resolution (bits) | Supply Voltage | Description | Channels | Data update rate | SFDR(dBc) | Data Interface | Noise spectral density | Temperature Range (°C) | Package Type | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
DAD9739 | 14 | 1.8V 3.3V | High-Speed DAC | 1 | 2500MSPS | 70@100MHZ | LVDS | -166@100Mhz | -40°C ~ 85°C | BGA-160 |
